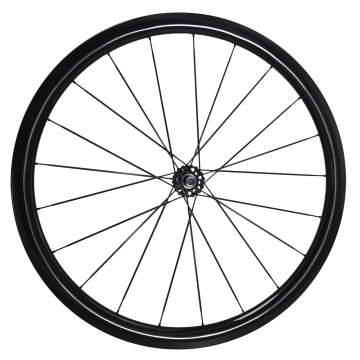

H35 OW28 700c wheelset with Ratchet hub carbon spokes 1230g wheelset for road gravel bike

  • EKW160-R35CL28set
  • T/T,Paypal
  • xiamen

  • 1
  • Size:    700C
  • Category:    carbon road bike wheels
  • Type:    Tubless Ready
  • Depth:    35mm
  • Width:    28mm
  • Appearance and Finish:    3K    UD    Matte    Glossy
  • Weight:    1280+/-30g
  • Decal:    customized
  • Warranty:    24 months
  • Delivery time::    10-30 days
  • Material:    full carbon toray T700
  • Spoke hole:    21    24
  • Internal hole:    customized
  • Max tire pressure:    120psi
  • Standard:    EN standard
  • Origin:    Xiamen City Fujian Province China
  • Contact Now
Product Details

H35 OW28 700c wheelset with Ratchet hub carbon spokes 1230g wheelset for road gravel bike



Specifications

Model

EKW160-R35CT28v wheelset,

Tubeless Ready

Material

Toray T700 Carbon+special material

Finish Appearance

UD/ 3k/ 3k twill in matt/glossy,

or, customize.

(Rims without-coating is lighter.)

Rims Size

35 Depth, O.W.28 I.W.21 Width,

OD 633mm, ERD 564mm

Weight

1230+/-30g/set.

Hub+Spokes

Front 12*100 Rear 12*142 center lock disc-brake,

sapim steel-spoke f20/rear24.

Or, customize.

Other weight ref. for  carbon wheelset built with the same hubs and spokes.

EKW160(R35C/L-28): 1230g +/-30g.

EKW145(R40C/L-28): 1250g +/-30g.

EKW154(R46C/L-28): 1260g +/-30g.

EKW152(R50C/L-28): 1280g +/-30g.

EKW170(R50C/L-28,U-shaped): 1320g +/-30g.

EKW155(R55C/L-28): 1324g +/-30g.

EKW84(R60C/L-28):  1390g +/-30g.

EKW163(R65C/L-28): 1410g +/-30g.

EKW85(R88C/L-28):  1600g +/-30g.

EKW161(R50C/L-30): 1330g +/-30g.

EKW168(R60C/L-30): 1430g +/-30g.



WHY US

There are a wide range of products for selection, from 12"/ 14"/ 16"/ 18"/ 20"/ 24"/ 26"/ 27.5"/ 29" and 700C.



Molds

1. Owning a mold factory. Speeding up the mold development or modification.

2. Almost 20 years experience on opening new mold of carbon fiber product.

3. Applying 718HH Steel tooling, with hardness HRC32-38. No pin. Self-lock slide. Not easy to clamp yarn. All these ensure the tooling a longer service life.

4. Processing with the large CNC Machine, no tool connection, one-stage process, ensuring mold flatness and roundness within standard.



Molding Machines

1. Non-interference one-to-one separate heating, stable temperature, faster heating speed, each machine comes with a temperature control system.

2. Screw air compressor ensures high pressure and constant pressure molding.



Structure Design

1. The mold slider adopts a three-piece structure, the thickness of the left and the right sides of the bead is uniform, the groove is with standard depth & stable shape, and is almost 0 tolerance.

2. No yarn clamping, no lack of glue, stable roundness & flatness, no need to paint the groove.

3. New technique ensures that the small round bar won't slip off, ensure the stability of structure, no unnecessary cavity and reliable strength.

4. No carbon ring, no EPS, no cover. The shape of preform fixture is close to the mold, the position of the spokes is stable. No unnecessary cavity, no deviation.



20+ Certificate of Utility Model Patent



DIY Decal is welcome!

We can apply water decal on rims according your need, just provide design document to us.


Warranty: 2 year for all our rims/spoke-wheels/disc-wheels.



Please feel free to contact us for more details please.
